What’s in the box?

1N Inverter

Dimensions (in cms)

43.2*42.9*30.0 CM

No. of Batteries Supported

3

Net Weight(In Kg)

31.5 kg

Maximum Panel Capacity (W)

3KVA

Nominal Battery bank voltage

36V

Application Area

• Banks • Schools/Colleges • Warehouses/Factories • Showrooms • Restaurants

Product Category

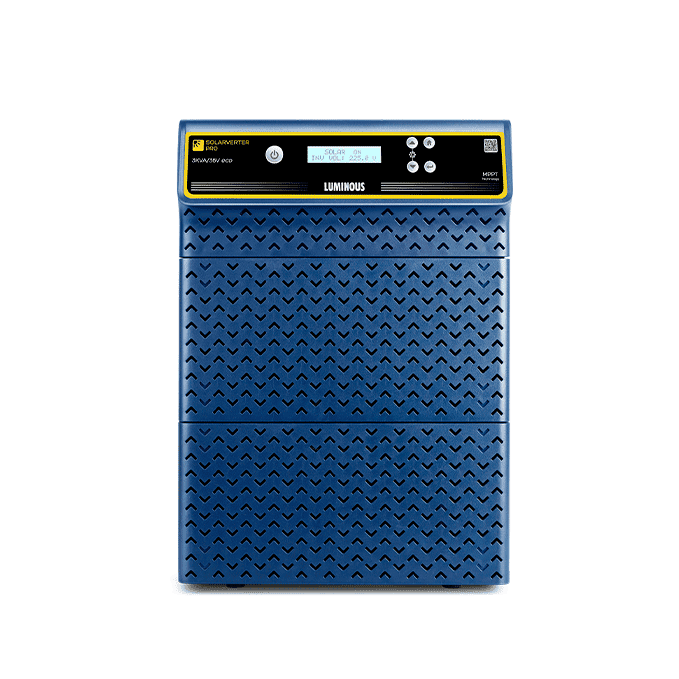

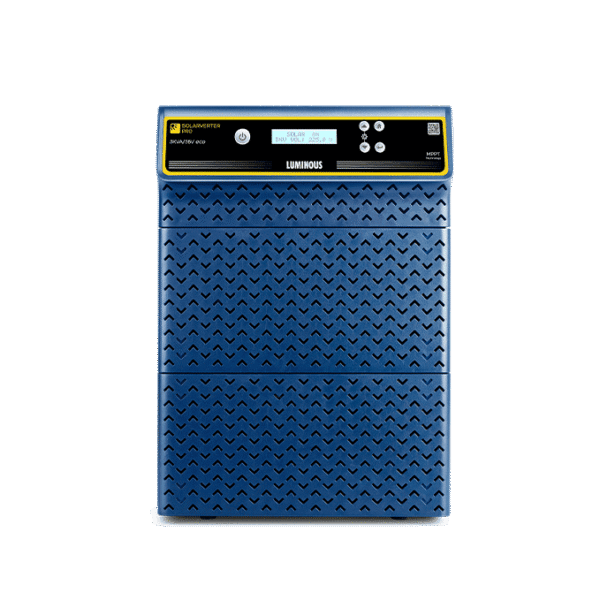

Solarverter PRO (2 KVA to 5 KVA)

Input Voltage Range

75V-150V

Features

• Rated AC power – 230V (single phase) • Max Supported Panel Power – 3000 Wp, Input Voltage Range (Vmp) – 60V-120V • Charge Controller – MPPT, Input Voltage Range (Voc)- 75V-150V • Nominal Battery Bank Voltage – 36V • BIS certified solar inverter • In-built TDR for loads with heavy in-rush current • Inbuilt MPPT charge controller to maximize solar generation from solar panels • Inbuilt isolation transformer to protect from grid surges and noise • User selectable source priority: Choose source priority from solar, battery and grid • User friendly Informative LCD Display • MCB protection against short circuit protection • Pure sine wave output for better performance & safety of connected loads • Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.

Warranty
